Plant Ramps - Type AVS 200
(See table below for sizes and capacities)

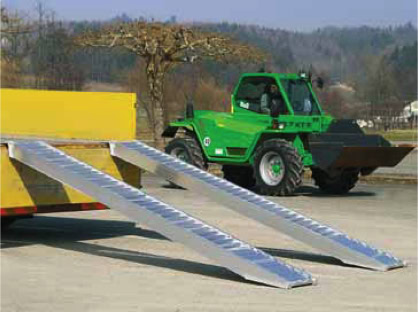

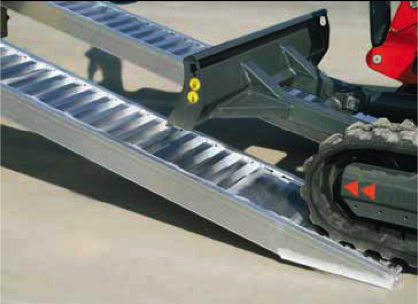

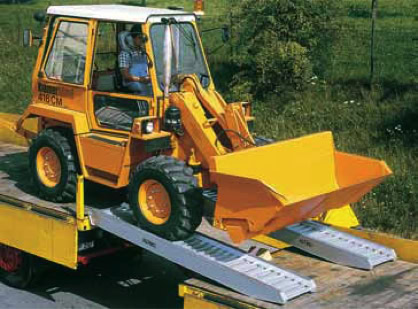

AVS 200 ramps are ideal for loading large excavators and tractors. Capacities range from 62400kgs for a 5285mm long ramp to 11330kgs for a length of 2885mm (see table below). As with all AVS ramps, the high quality alloy used ensures that these ramps will last for years even with constant use.
Connection and curb options

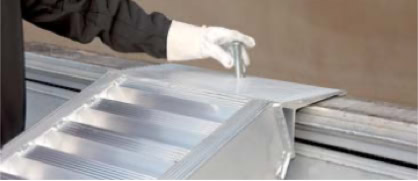

Lip with steel pin and movable safety device
Hook with welded nib
Hinge fitting
Long lip with pin and movable safety device

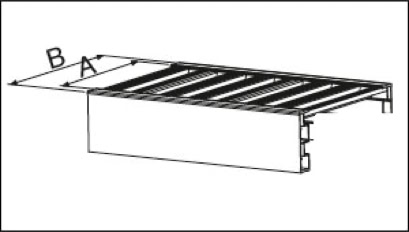

Ramp profile without curbs

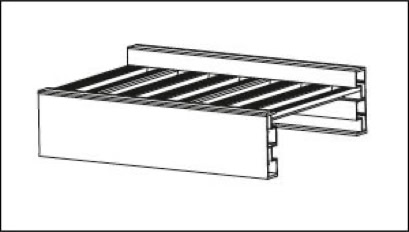

Ramp profile with curbs on one side
Ramp profile with curbs on both sides

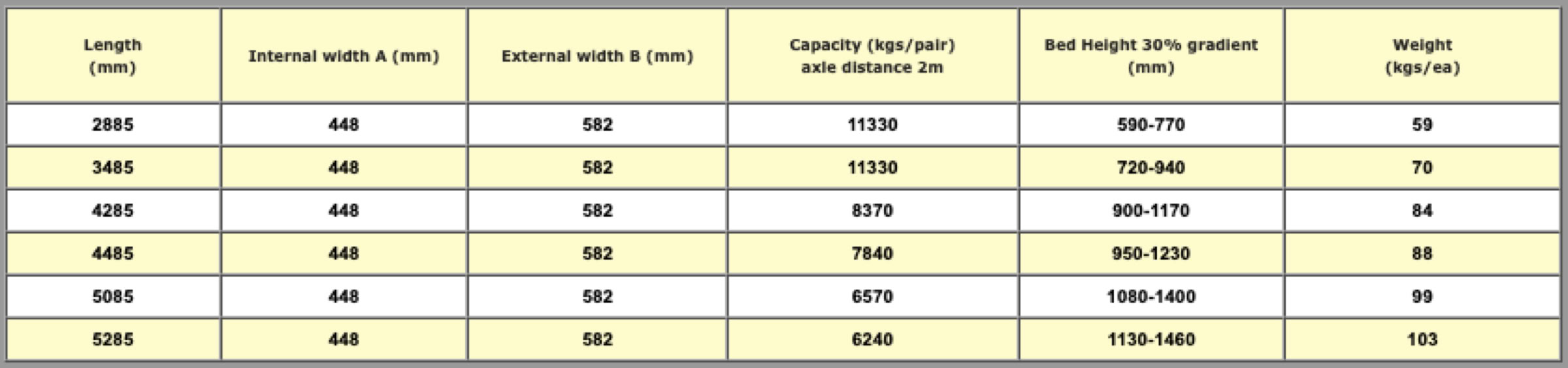

Standard Ramp Sizes (other sizes available on request)
