Plant Ramps - Type AVS 150

(See table below for sizes and capacities)

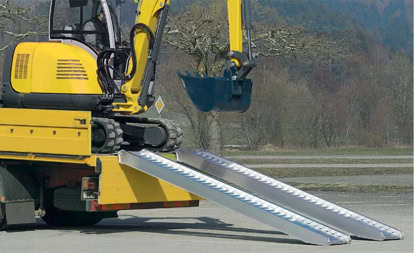

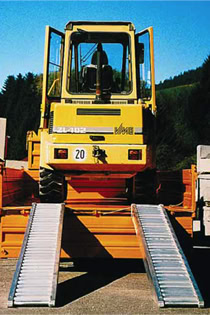

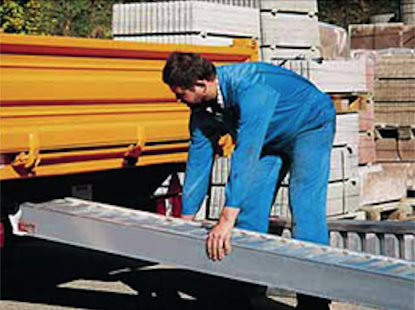

Made for loading mid range to heavy equipment, the AVS 150 has a larger and wider track than its smaller cousins Capacities range from 3310kgs for a 5085mm long ramp to 7230kgs for a length of 2685mm (see table below). Although still very light weight, with the longer ramps we are able to offer spring assistance when used with the hinged connection option.

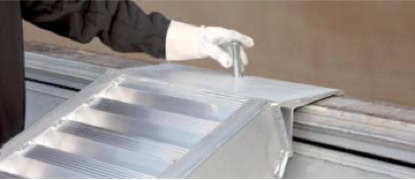

Connection and curb options

Pedestrian Ramps:

Van Ramps:

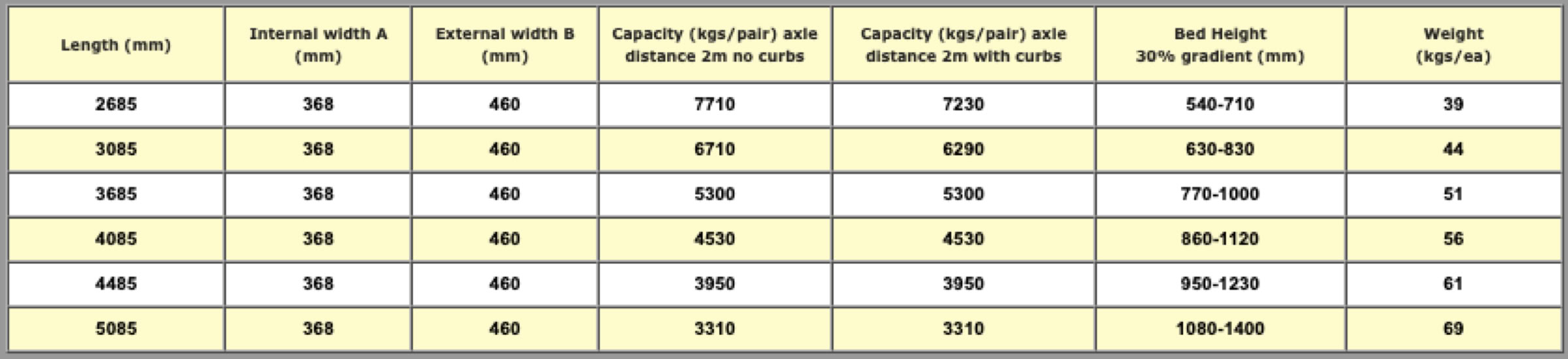

Standard Ramp Sizes (other sizes available on request)
