Plant Ramps - Type AVS 130

(See table below for sizes and capacities)

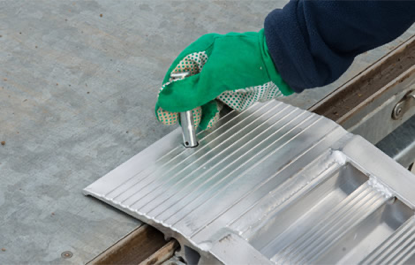

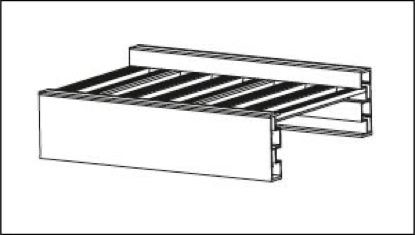

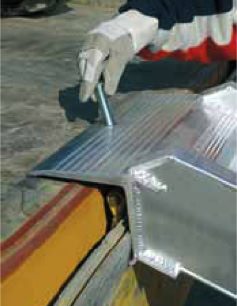

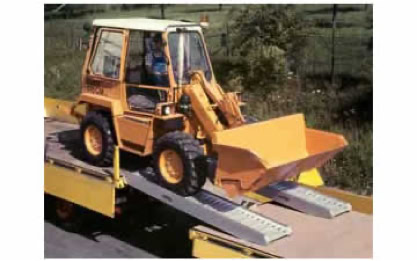

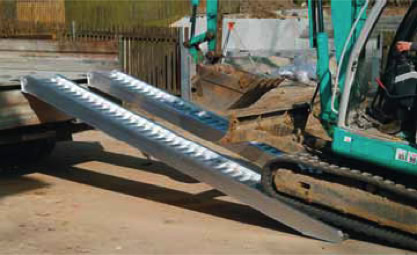

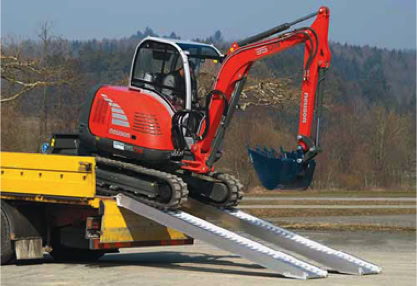

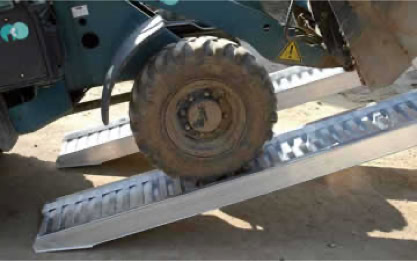

Made for loading rubber track and pneumatic tyred plant, the AVS 130 the ideal ramp for use with most large plant trailers and 7.5 tonne trucks. Capacities range from 2120kgs for a 5210mm long ramp to 5150kgs for a length of 2510mm (see table below).  The AVS 130 plant ramps are supplied with a steel pin and drop bolts as standard. Available with or without curbs or with curbs on one side only.

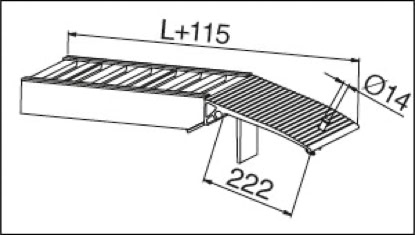

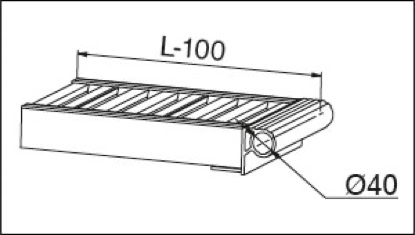

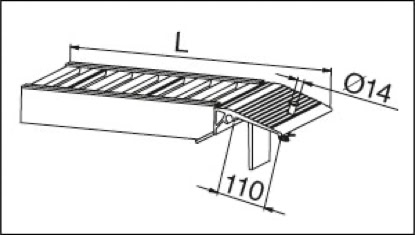

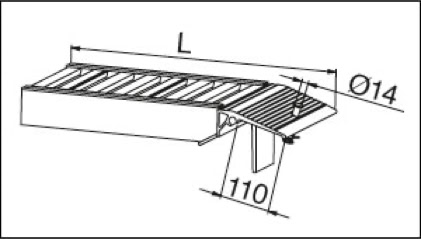

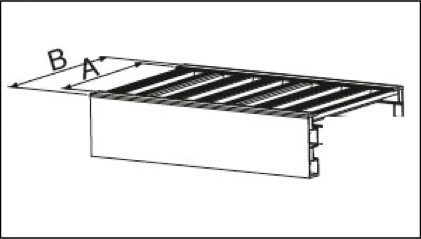

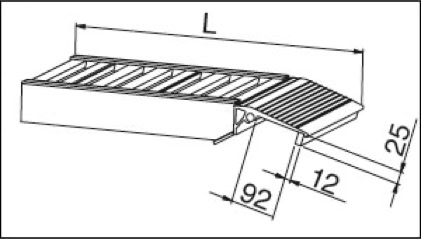

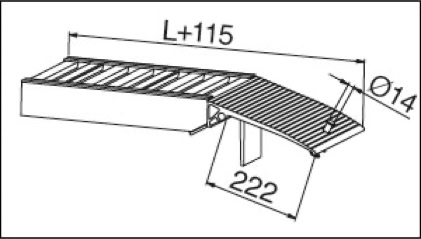

Connection and curb options

Pedestrian Ramps:

Van Ramps:

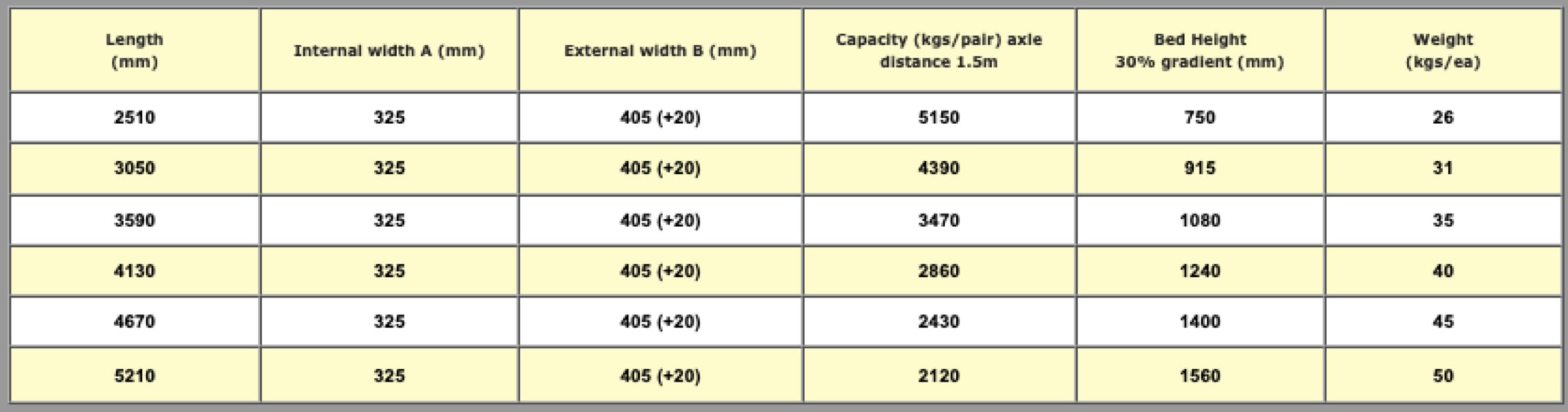

Standard Ramp Sizes (other sizes available on request)
