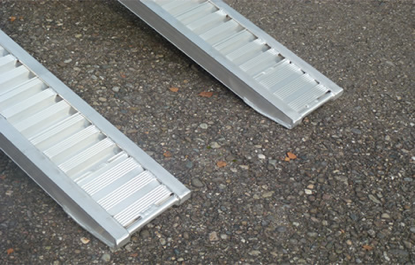

Plant Ramps - Type AVS 110
(See table below for sizes and capacities)

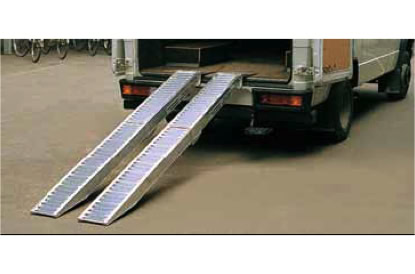

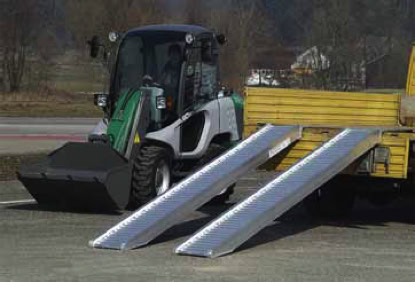

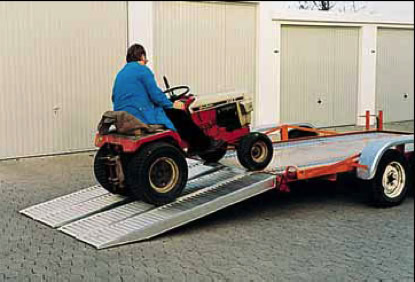

The AVS 110 ramps are made for loading rubber track and pneumatic tyred plant such as tractors, diggers and ATVs. It is an ideal ramp to use with most plant trailers and 3.5 tonne trucks. Capacities range from 1090kgs for a 4670mm long ramp to 4050kgs for a length of 1610mm (see table below). The robust surface ensures minimal wear even with constant use. The ramps come in 2 standard widths 305mm or 400mm and 3 different connection options detailed below. The AVS 110 ramps are supplied with a steel pin and drop bolts as standard.
Connection and curb options

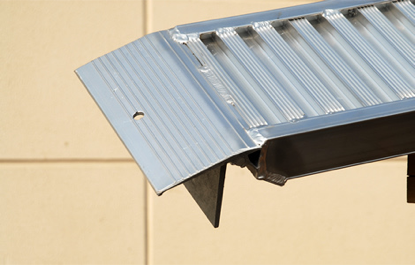

Lip with steel pin and movable safety device
Hook with welded nib

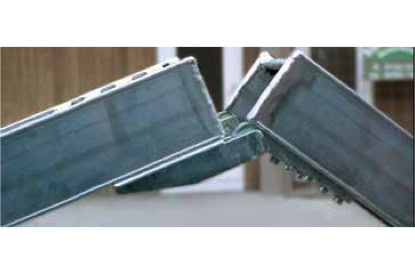

Hinge fitting
Long lip with pin and movable safety device
Ramp profile without curbs
Ramp profile with curbs on one side
Ramp profile with curbs on both sides

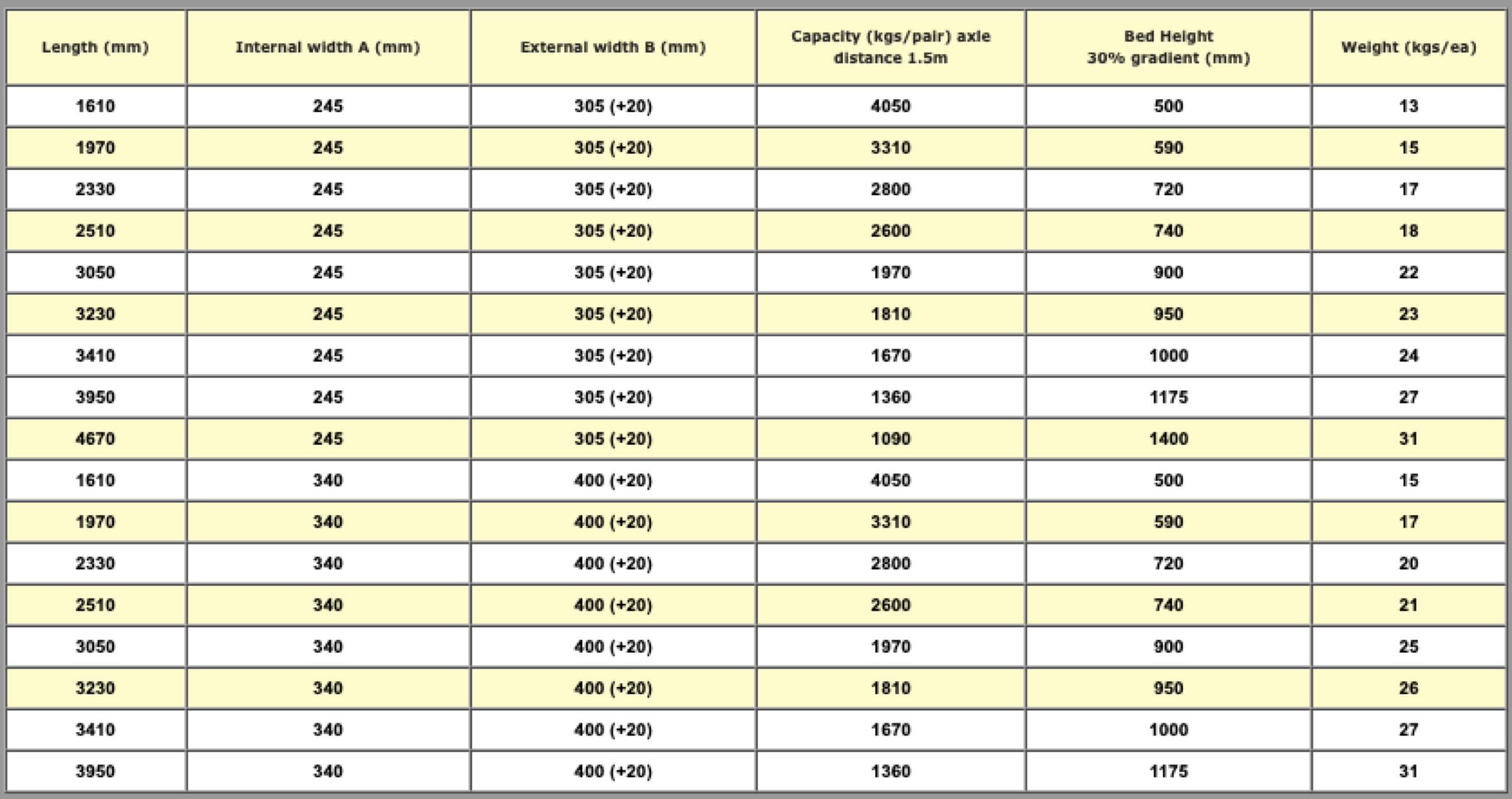

Standard Ramp Sizes (other sizes available on request)
