Pedestrian -

Multiple Hose Pipe and Cable Ramp - GRP 100

(See table below for sizes and capacities)

Our GRP 100 hose and cable ramp is a pedestrian ramp is designed to give safe pedestrian access over multiple pipes.

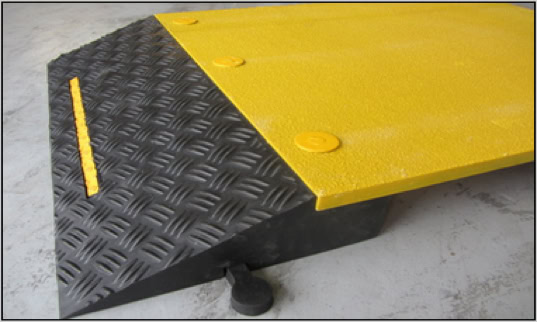

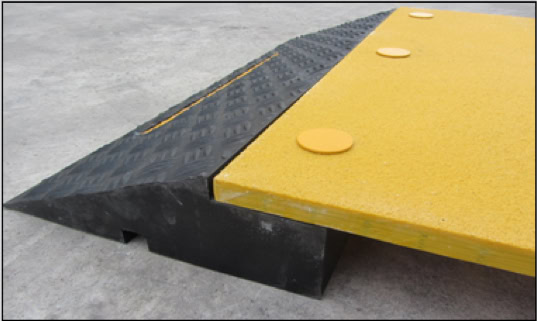

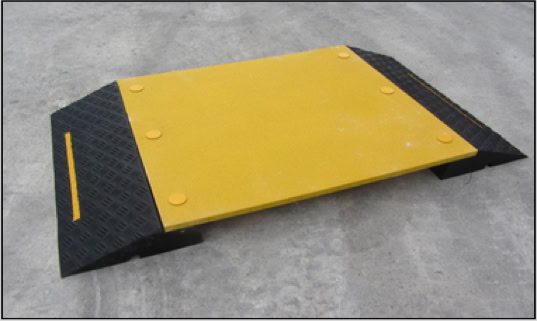

This is a 3-piece ramp consisting of 2 polymer rubber non-slip wedges and a high visibility pedestrian bridge. It comes fully assembled and requires two people to lift and deploy.

The solid top has a bridging distance of 800mm with a 100mm clearance underneath.

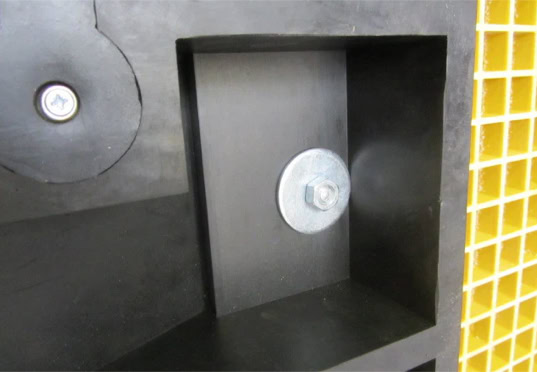

The rubber dogs allow wedges to be joined together.

• Made from GRP and PE/SBR rubber
• Pipe/cable diameter 100mm max
• Total weight 47.5kgs
• 1560 x 880 x 125mm high
• Capacity 250kgs
