Bridge Plates -

Drawbridges

(See table below for sizes and capacities)

Type FBS

The FBS Steel drawbridge leveler supports most loading applications.

The 5-bar tread plate surface gives a high quality no-slip surface which can be either galvanised or painted. Both options protect against corrosion.

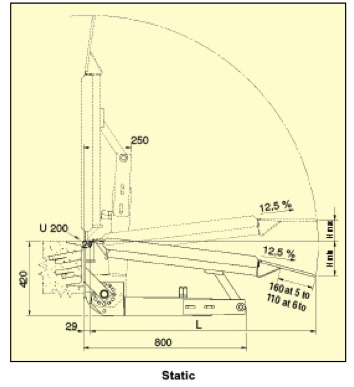

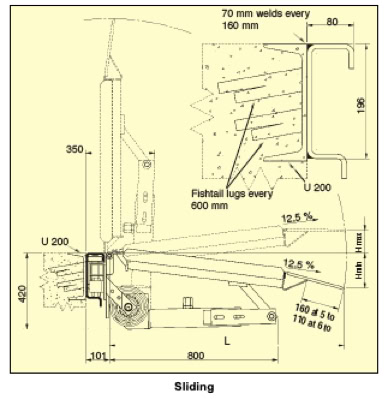

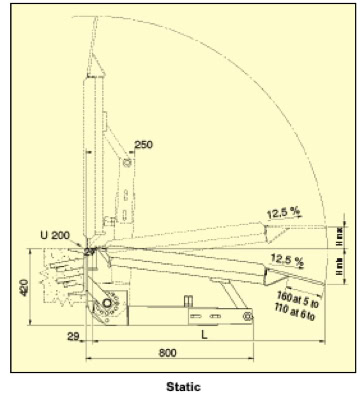

The FBS drawbridge is available in static or sliding versions. The sliding model runs in an open base guide rail which prevents the collection of dirt and debris, ensuring smooth and easy sideways movement.

Every FBS leveler is fitted with underside springing to balance the weight of the platform.

FBS drawbridge leveller:

- is available in lengths of up to 2000mm

- supports height differences of up to 250mm between the dock and lorry

 - has a load capacity of up to 6000kgs

 - available with a segmented lip

Drawbridge levelers -

Trench/gangway -

Step/Pipe Ramps -

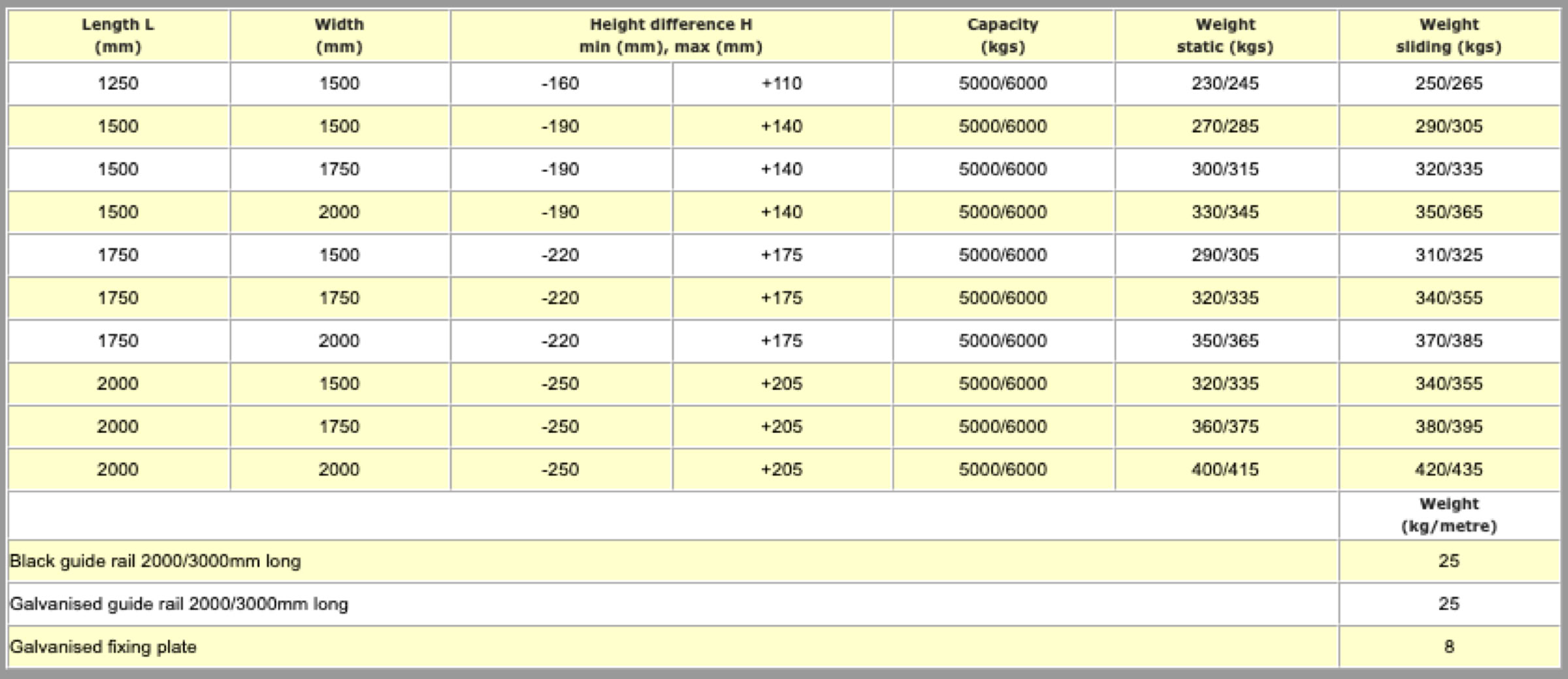

Standard Sizes (other sizes available on request)
