Polymer Sectional Open Hose ramp

Products > Polymer ramps > Hose pipe & cable ramps > Sectional Open Hose ramp

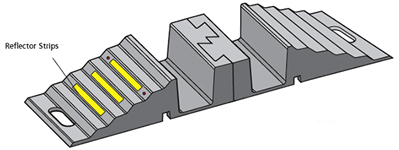

Polymer/rubber Sectional Open Hose ramp
  • Made from Natural/SBR rubber compound
  • Reflector strips on both sides
  • Can be connected together
  • 44 tonne capacity
    Hose ramp
Also see

Open Hose Ramp
Type HR
Polymer/rubber Open Hose ramp

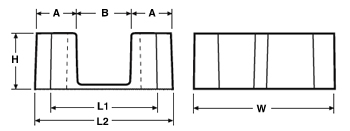

Section & plan details
Polymer/rubber Sectional Open Hose ramp Hose ramp
Polymer/rubber Sectional Open Hose ramp Hose ramp
Polymer/rubber Sectional Open Hose ramp Polymer/rubber Sectional Open Hose ramp
Standard sizes
Type
Width W
(mm)
Length L1
(mm)
Height H
(mm)
Length L2
(mm)
Width A
(mm)
Width B
(mm)
Width C
(mm)
Height D
(mm)
Width E
(mm)
Width F
(kgs)
Weight
(kgs)
Outer
300
535
118
N/A
55
110
332
108
110
30
10
Inner
300
20
118
290
55
115
N/A
N/A
N/A
N/A
5
