Loose Van Ramp - Type AWR
Products > Aluminium Loading ramps > Loose van ramp
The AWR is available in plate or grit coated options. An ideal ramp for loading equipment with small wheels or casters.
Loose Van Ramp
Click on small images to enlarge
Loose Van Ramp Loose Van Ramp Loose Van Ramp Loose Van Ramp

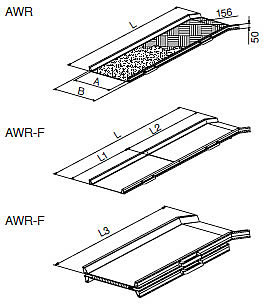

Section & Plan Details
Also see

Van ramp
Type RRK
Van ramp

Loose Van Ramp
Standard ramp sizes
Type
Length L (mm)
Width (mm)
Surface
L3 (mm)
Height Difference HD (mm)
Capacity (kgs/ea)
Weight (kgs/ea)
AWR
1985
640
733
Grit Coated
270-520
440
28
2490
640
733
Grit Coated
350-670
320
35
1985
640
733
Plate
270-520
440
27
2490
640
733
Plate
350-670
320
34
AWR-F
2000
640
733
Grit Coated
1110
270-520
440
29
2480
640
733
Grit Coated
1310
350-670
320
36
2000
640
733
Plate
1110
270-520
440
28
2480
640
733
Plate
1310
350-670
320
35
