Aluminium Van ramp - Type RRD

Products > Aluminium Loading ramps > Swivel Van ramp
Aluminium swivel van ramp
Click on small images to enlarge
Aluminium swivel Van ramp Aluminium swivel Van ramp Aluminium swivel Van ramp Aluminium swivel Van ramp

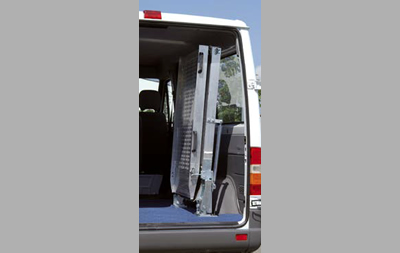

 The RRD van ramp is the logical development from the RRK. The ramp is the same, but it has the facility to swivel back against the side panels of your van. It is also designed for easy one-man operation. The folding and unfolding of the ramp is made almost effortless by the use of gas struts to balance the weight of the ramp.

The surface of the van ramp is fabricated from extruded aluminium profiles which are perforated and embossed to give a perfect anti-slip surface. This also allows rain and snow to disperse very easily.

The reversible locking latch allows the ramps to swivel inside or outside of the vehicle making it perfect for parcel delivery firms.

Fold down pedestals can be added to the van ramp to increase the capacity to 1 tonne.

The van ramps come with a complete mounting kit including a base plate and a reinforcing counter plate which can be easily removed if the vehicle is used for other purposes.

Download Fitting instructions PDF (204 KB)
Also see

Van ramp
Type RRK
Aluminium Van ramp

Section and Plan Details
Technical diagram
Standard ramp sizes
Type
Length L (mm)
Width B (mm)
Height H (mm)
Height difference HD
min (21%), max (30%)
a
(mm)
c
(mm)
Capacity (kgs/ea)
Weight (kgs/ea)
RRD 02
1400
800
865
220
340
95
285
450
37
RRD 03
1400
1000
865
220
340
95
285
450
43
RRD 04
1600
800
940
240
380
100
290
450
39
RRD 05
1600
1000
940
240
380
100
290
450
46
RRD 06
1800
800
1045
285
460
100
290
450
41
RRK 07
1800
1000
1045
285
460
100
290
450
50
RRD 08
2000
800
1115
310
500
100
290
450
50
RRD 09
2000
1000
1115
310
500
100
290
450
59
RRD 11
2200
800
1220
355
570
100
290
450
52
RRD 12
2200
1000
1220
355
570
100
290
450
62
RRD 00
2400
800
1325
400
640
100
290
450
57
RRD 01
2400
1000
1325
400
640
100
290
450
66
RRD 15
2600
800
1430
440
700
100
290
450
59
RRD 16
2600
1000
1430
440
700
100
290
450
69
RRD 18
2800
800
1535
485
760
100
290
430
62
