Aluminium Van ramp - Type RRK

Products > Aluminium Loading ramps > Van ramps
Aluminium van ramp
Click on small images to enlarge
Aluminium Van ramp Aluminium Van ramp Aluminium Van ramp Aluminium Van rampAluminium Van ramp
 The RRK aluminium van ramp is designed for easy one-man operation. The folding and unfolding of the ramp is made almost effortless by the use of gas struts to balance the weight of the ramp.

The surface of the van ramp is fabricated from extruded aluminium profiles which are perforated and embossed to give a perfect anti-slip surface. This also allows rain and snow to disperse very easily.

The RRK is held in the vertical position by two latches. Mounting blocks are used to keep the assembly rigid and prevent any vibration during transport.

Fold down pedestals can be added to the van ramp to increase the capacity to 1 tonne (see picture 5).

If the vehicle is used for other purposes, the ramp can be easily removed by undoing the thumb screws, and can be mounted on different vehicles of identical dimensions.

Download Fitting instructions PDF (204 KB)
Also see

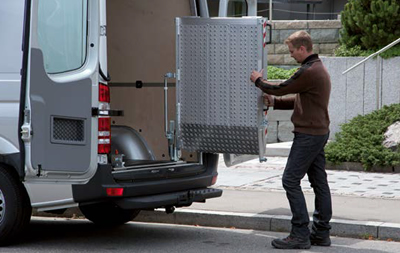

Swivel van ramp
Type RRD
Aluminium Swivel van ramp

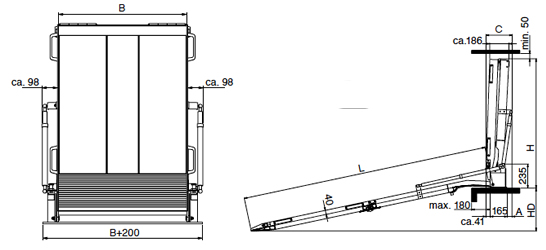

Section and Plan Details
Technical diagram
Standard ramp sizes
Type
Length L (mm)
Width B (mm)
Height H (mm)
Height difference HD
min (21%), max (30%)
a
(mm)
c
(mm)
Capacity (kgs/ea)
Weight (kgs/ea)
RRK 02
1400
800
800
220
340
95
285
450
37
RRK 03
1400
1000
800
220
340
95
285
450
43
RRK 04
1600
800
875
240
380
100
290
450
39
RRK 05
1600
1000
875
240
380
100
290
450
46
RRK 06
1800
800
980
285
460
100
290
450
41
RRK 07
1800
1000
980
285
460
100
290
450
50
RRK 08
2000
800
1045
310
500
100
290
450
44
RRK 09
2000
1000
1045
310
500
100
290
450
53
RRK 10
2000
1200
1045
310
500
100
290
450
64
RRK 11
2200
800
1150
355
570
100
290
450
46
RRK 12
2200
1000
1150
355
570
100
290
450
56
RRK 00
2400
800
1250
400
640
100
290
450
50
RRK 01
2400
1000
1250
400
640
100
290
450
60
RRK 14
2400
1200
1250
400
640
100
290
450
72
RRK 15
2600
800
1360
440
700
100
290
450
53
RRK 16
2600
1000
1360
440
700
100
290
450
63
RRK 17
2600
1200
1360
440
700
100
290
450
73
RRK 18
2800
800
1465
485
760
100
290
430
56
RRK 19
2800
1000
1465
485
760
100
290
430
66
RRK 20
3000
800
1570
530
840
100
290
400
58
RRK 21
3000
1000
1570
530
840
110
300
400
68
