Sack truck bridge plate - Type AWB

Products > Bridge Plates & Drawbridges > Sack truck bridge plate

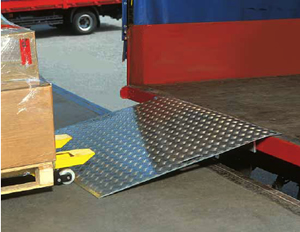

Sack truck loadin 1
Click on small images to enlarge
Sack truck bridge plates Sack truck bridge plates
 The AWB bridge plate is fabricated from aluminium plate with a five-bar tread non-slip surface. Designed for loading and unloading with sack trucks, pump trucks and roll cages. It is lightweight and easy to handle and comes with handle slots on either side.
Also see
Section and plan details

Small bridge plate
Type HFB
Small bridge plate

Heavy duty bridge plate
Type HF Heavy duty bridge plate

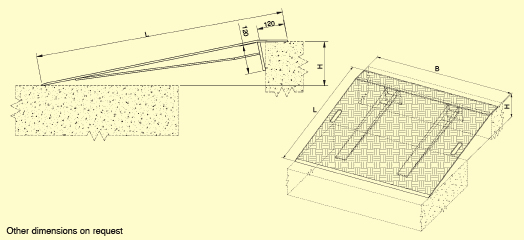

Technical sack detail
Standard ramp sizes
Length L
(mm)
Width B
(mm)
Height difference H
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
750
1250
0
+100
600
20
1000
1250
+50
+125
600
26
1200
1250
+60
+150
600
30
1500
1250
+80
+190
600
40
1800
1250
+100
+225
600
47
750
1250
+30
+100
1200
24
1000
1250
+50
+125
1200
30
1200
1250
+60
+150
1200
37
1500
1250
+80
+190
1200
47
1800
1250
+100
+225
1200
57
Transport wheels
4
Transport trolley for lengths 1500mm and 1800mm
18
