Aluminium Pipe bridge - Type SKR

Products > Bridge Plates & Drawbridges > Pipe bridge

The SKR aluminium pipe ramps are made to bridge over cables, hoses and tubes up to a diameter of 110mm. They support vehicles weighing up to 14,000kgs such as Dust Carts, Fire Engines, and other emergency vehicles.

  • light weight
  • easy to handle
  • weather proof
  • mainenance free
  • integrated handles
  • fitted with rubber profiles to prevent sideway slippage
Pipe bridge
Click on small images to enlarge
Pipe bridge Pipe bridge Pipe bridge Pipe bridge
Section details
Also see

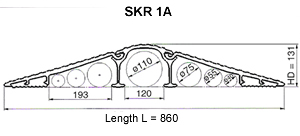

Technical Pipe bridge detail

Technical Pipe bridge detail

Heavy duty hose ramp

Open hose pipe ramp

Closed hose & cable ramp
Type HCR
Close cable ramp

Modular hose/cable ramp

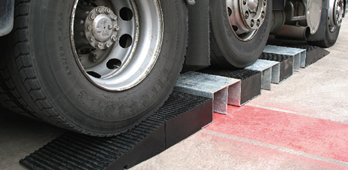

Modular ramp

Standard ramp sizes
Type
Length L
(mm)
Width B
(mm)
Capacity
(kgs/pair)
Weight
(kgs/each)
SKR 1A
860
600
14.000
23
SKR 2B
748
700
14.000
22
Note: Non-standard sizes are generally no problem. Other dimensions available on request.
