Aluminium drawbridge leveller - Type FBA



The FBA drawbridge leveller offers a versatile light-weight option which can take loads of up to 4500kgs.

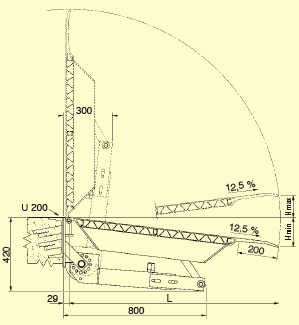

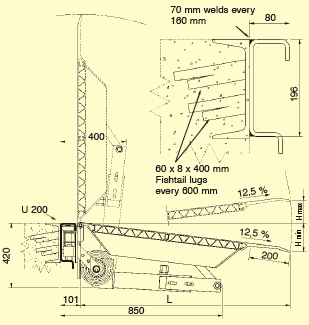

It is available in lengths of up to 2315mm and can be used with height differences between dock and lorry of up to 310mm.

Static or sliding versions are available. The sliding model runs in an open base quide rail which prevents the collection of dirt and debris ensuring smooth, easy sideways movement.

Every leveller is fitted with underside springing to balance the weight of the platform.

Also available with a segmented lip.
