Aluminium Container bridge plate - Type MC

Products > Bridge Plates & Drawbridges > Container bridge plate

The mobile container bridge plate, type MC is used specifically for loading and unloading shipping containers. The heavy duty combination of steel and aluminium ensures a strong construction for use in this tough environment. Integral fork lift handles makes them easy to move.

A strong steel construction with foldable aluminium wedges guarantees capacities of up to 6 tonnes.



Container bridge plate
Click on small images to enlarge
Container bridge plate Container bridge plate Container bridge plate Container bridge plate Container bridge plate

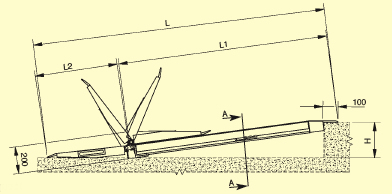

Section and plan details
Also see
Container bridge plate

Technical sack detail

Container bridge plate

Sack truck bridge plate
Type AWB
Sack truck ramp

Heavy duty bridge plate
Type HF Bridge plate ramp

Standard ramp sizes
Length L
(mm)
Length L1
(mm)
Length L2
(mm)
Width B
(mm)
Height difference H
min (mm), max (mm
Capacity
(kgs)
Weight
(kgs)
2070
1465
565
2000
+60
+235
6000
345
2320
1715
565
2000
+60
+265
6000
400
2570
1965
565
2000
+60
+295
6000
460
2320
1715
565
2300
+60
+265
6000
455
